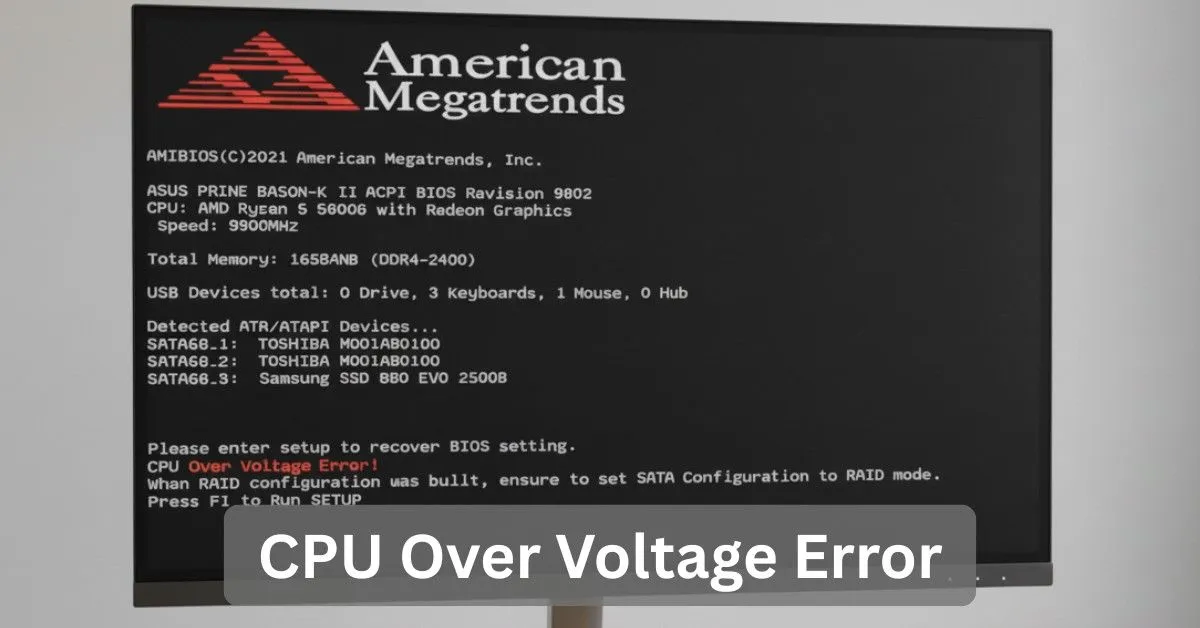

CPU Over Voltage Error – Causes, Solutions & Prevention!

A CPU Over Voltage Error is one of the most alarming warnings a PC can display during startup or inside the BIOS. Although the message looks simple, its causes can range from minor configuration issues to serious hardware faults that can permanently damage the processor or motherboard.

This guide explains what the error means, why it appears, and how to fix it using a clear step-by-step approach suitable for both beginners and advanced users.

What Is CPU Over Voltage Error?

A CPU Over Voltage Error appears when the motherboard detects that the voltage going to the processor (Vcore) is above the safe operating range. High Vcore can damage CPU circuits, VRMs, or motherboard components.

Here’s the key point:

Most of the time, this error is NOT true overvoltage.

It is usually caused by:

• BIOS bugs

• Faulty voltage sensors

• Incorrect auto voltage tables

• EXPO/XMP raising SOC voltage too high

• PSU spikes or unstable rails

• VRM overheating

How CPU Voltage Works:

To understand why the error appears, it helps to know how CPU voltage works.

• Vcore = voltage fed directly into the CPU cores

• SOC Voltage (AMD only) = voltage for memory controller, iGPU, etc.

• VRMs = regulate and deliver the correct voltages

• PSU = supplies 12V power to motherboard

If any of these become unstable, overvoltage warnings appear even if the CPU itself is fine.

Why Does CPU Over Voltage Error Happen?

Below are the most common reasons based on thousands of real user reports.

Wrong Voltage Readings in BIOS:

Some BIOS versions misread voltage sensors.
Signs:

• Windows boots normally

• HWInfo shows normal Vcore

• Only BIOS shows extremely high voltage

PSU Voltage Spikes or Weak Power Supply:

A failing PSU can send unstable 12V power to the CPU.

Triggers include:

• Cheap/old PSU

• Fluctuating 12V rail

• Loose CPU power cable

• Wall socket power surge

VRM Overheating or Damage:

VRMs convert 12V to CPU voltage.
When hot or failing, they send unstable power.

Symptoms:

• Coil whine

• Burning smell

• Hot VRM heatsinks

• Shutdowns during gaming

Wrong BIOS Settings (LLC, Manual Vcore, Offset):

Manually configured voltages can push unsafe levels.

Risky settings include:

• High LLC (Load-Line Calibration)

• Manual Vcore too high

• Offset mode misconfigured

• SVID disabled incorrectly

EXPO/XMP Causing High SOC Voltage (AMD):

On AMD AM5 boards, enabling EXPO can raise SOC voltage above safe limits (1.25V max recommended).

Commonly affected brands:

• ASUS – Known to push SOC up to 1.35–1.40V on EXPO
• MSI – Some auto settings exceed recommended limits
• Gigabyte – Certain BIOS versions overvolt SOC when EXPO is active

Actual CPU or Motherboard Damage:

Only happens with:

• Power surge

• VRM short circuit

• Burned MOSFETs

Also Read: CPU Over Temperature Error – Causes and Solutions 2025!

How Motherboards Detect Overvoltage:

Motherboards use VRM sensors and internal CPU telemetry to detect voltage.
Detection may be triggered by:

• Misconfigured sensor tables

• Drifted VRM calibration

• Sudden 12V spikes

• BIOS reading errors

Understanding this helps identify false triggers versus real danger.

How to Diagnose CPU Over Voltage Error (Step-by-Step):

Check BIOS and Windows monitoring tools to compare Vcore/SOC readings with safe limits. If values differ, clear CMOS and inspect PSU/VRM for stability issues.

1. Check BIOS Voltage Readings:

Look at Vcore, SOC (for AMD), and VDDIO/VCCSA (for Intel) to verify if any value is above the safe range.

Safe Vcore ranges:

CPU Type	Safe Vcore
Intel 10th–14th Gen	0.9–1.35V
Ryzen 3000/5000	0.9–1.35V
Ryzen 7000/9000	0.9–1.25V (SOC < 1.25V!)

If your BIOS shows abnormally high values (for example 1.7V or above) but Windows shows normal readings, this usually means the issue is caused by a BIOS glitch or faulty onboard sensor.

For accurate manufacturer voltage limits, check Intel’s official processor documentation and AMD’s official PBO voltage guidelines.

2. Cross-Check in Windows:

Check HWInfo64, CPU-Z, or AIDA64. If the voltage looks normal in Windows, then the overvoltage warning is not real.

3. Clear CMOS:

Fixes 99% of configuration issues.

4. Test PSU Stability:

Check 12V rail:

Good	Bad
11.9V–12.2V	< 11.8V or > 12.3V

Replace PSU if unstable.

5. Inspect VRM Area:

Check for:

• Excessive heat

• Burn marks

• Bulging capacitors

Also Read: How to Check CPU Power Consumption? – Complete Guide 2025!

Motherboard Brands Common Issues:

ASUS:

• Known for SOC overvoltage on EXPO

• LLC levels are often aggressive by default

MSI:

• Auto voltage tables sometimes push Vcore too high

Gigabyte:

• Some BIOS versions misreport sensor values

ASRock:

• Inconsistent auto SOC voltage on AM5

How to Fix CPU Over Voltage Error:

BIOS settings reset karo, phir CPU Vcore/SOC voltage ko manual safe range (1.20–1.25V) par set karo. Agar issue rahe, PSU aur motherboard VRM ko stability issues ke liye check karo.

Reset BIOS to Optimized Defaults:

This is the best first step because it instantly clears incorrect voltage settings and restores safe defaults.

Update or Roll Back BIOS:

If the issue began after a BIOS update → downgrade immediately.

Disable Manual OC:

Set Vcore, LLC, SVID behavior, and Offset mode to Auto so the motherboard can regulate voltage safely and prevent over-voltage issues.

Fix EXPO/SOC Voltage (AMD):

Set SOC manually to 1.20V
Set VDDIO_MEM to 1.1V

Replace Faulty PSU:

Install a high-quality power supply Seasonic, Corsair RMx/RMe, or EVGA SuperNova to ensure stable voltage and eliminate CPU over-voltage errors.

Improve VRM Cooling:

Add proper case airflow and keep VRM heatsinks clean to maintain stable temperatures and prevent voltage spikes.

Also Read: How to Undervolt CPU Safely (Intel & AMD Guide 2025)

Recommended Safe Voltage Settings for 2025:

• Intel Vcore: 1.10–1.35V

• Ryzen 7000/9000 Vcore: 1.00–1.25V

• Ryzen AM5 SOC: 1.20V recommended

• Load-Line Calibration: Medium/Auto

Common Mistakes to Avoid:

• Trusting BIOS voltage alone

• Using cheap PSUs

• Aggressively high LLC

• EXPO without checking SOC

• Updating BIOS during unstable power

Also Read: CPU Fan Error on Boot – Fix It Now 2025!

Long-Term Prevention Tips:

• Keep BIOS updated (avoid beta versions)

• Monitor voltages monthly

• Use a UPS to prevent surges

• Maintain good VRM airflow

• Avoid unnecessary manual voltage tweaking

When You Should Replace Hardware:

Replace PSU if:

• 12V rail unstable

• PC restarts during load

Replace the motherboard if:

• VRMs overheating

• Capacitors bulging

• Sensor errors persist

Replace CPU if:

• No boot

• VRM failure damaged CPU pins

Conclusion:

A CPU Over Voltage Error looks threatening, but in most cases, it is caused by BIOS bugs, sensor misreads, or voltage misconfiguration rather than true hardware damage. By following the step-by-step diagnosis, fixing BIOS settings, checking PSU stability, and monitoring SOC/Vcore values, you can resolve the issue safely.
